MERLIN® Surgical System

MERLIN® Surgical System

Precise alignment for non-contact vitreoretinal visualization

Newly redesigned for maximum optical alignment

The MERLIN® Surgical System is the finest system for non-contact vitreoretinal procedures

With the pedigree of Volk optics, the MERLIN® Surgical System delivers unmatched high resolution wide field imaging, superior to any other non-contact vitrectomy viewing system.

MERLIN® is available in multiple platforms:

Condenser Lens Assembly (CLA) – Automated
Condenser Lens Assembly (CLA) – Manual
Rotational Assembly (RA)

CLARITY. Unmatched by Rivals

The Merlin lenses bring Volk’s proprietary double aspheric lens technology into the OR, providing exquisite views of the retina with superior sharpness and depth of field.

ALIGNMENT. Delivers Precision Every Time

Precise alignment with the opticals axis of the microscope
Smooth, graduated rotation to optimally position the lens
Intuitive fine focus adjustment

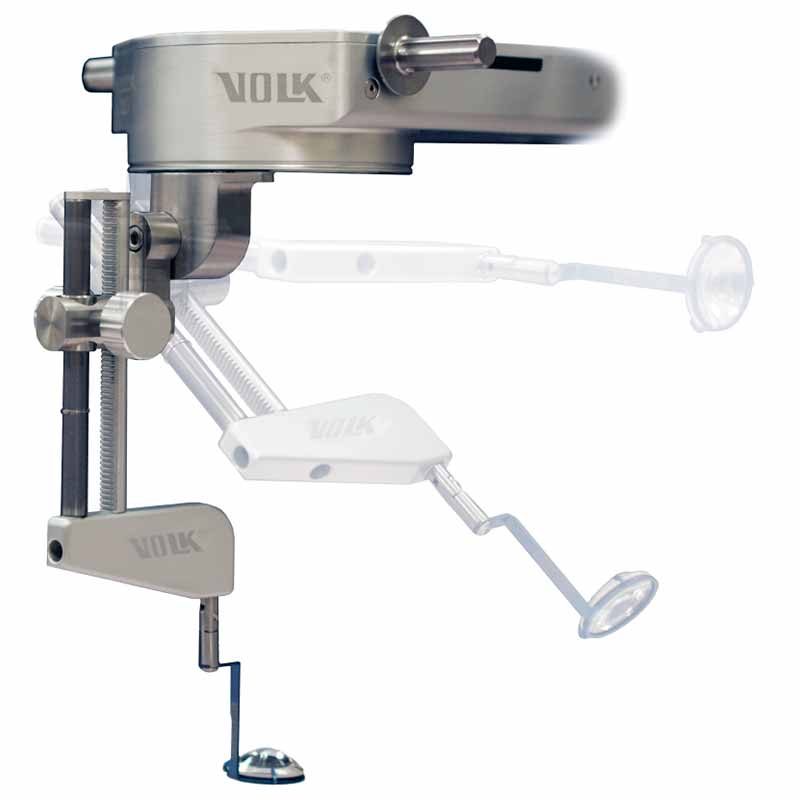

COMPACT. Design Maximizes Working Space

A simple pivoting mechanism that folds away when not in use, occupying minimal space beneath the microscope

PATIENT SAFETY. Increased by Efficient Optical Design

Merlin’s exclusive Condenser Lens Assembly

Automatically slides a condenser lens into the optical train when the Merlin in engaged
Eliminates the need to refocus the microscope when switching from anterior to posterior viewing, reducing surgery time
Significantly improves light transmission via anti-reflective coatings, reducing the risk of phototoxicity

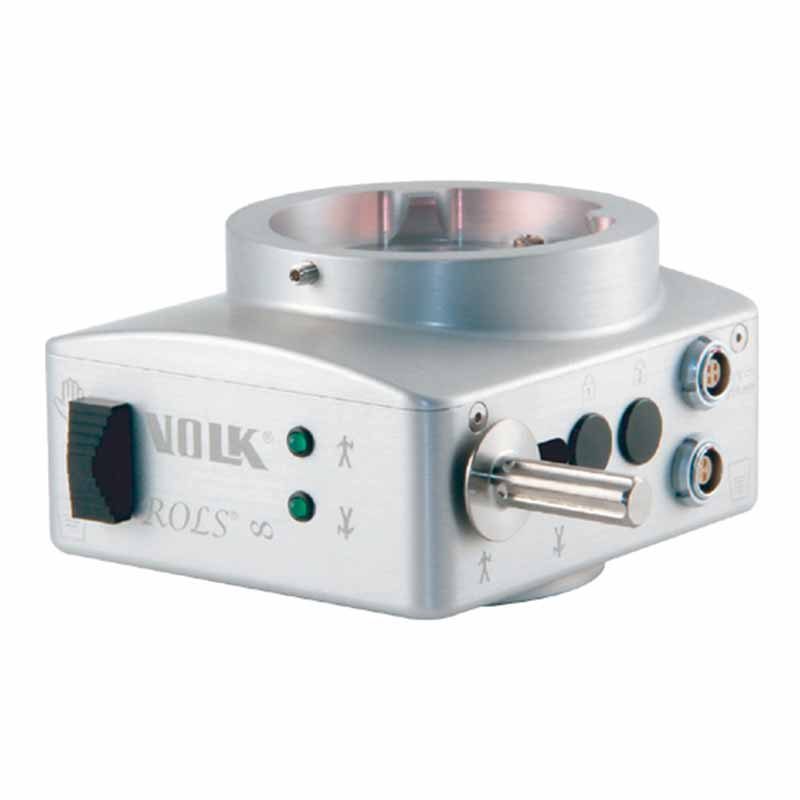

SEAMLESS. Reinversion with the ROLS

Automatically reinverts the surgeon’s view when the Merlin is engaged
Compatible with Volk’s indirect contact surgical lenses in manual mode and via foot pedal

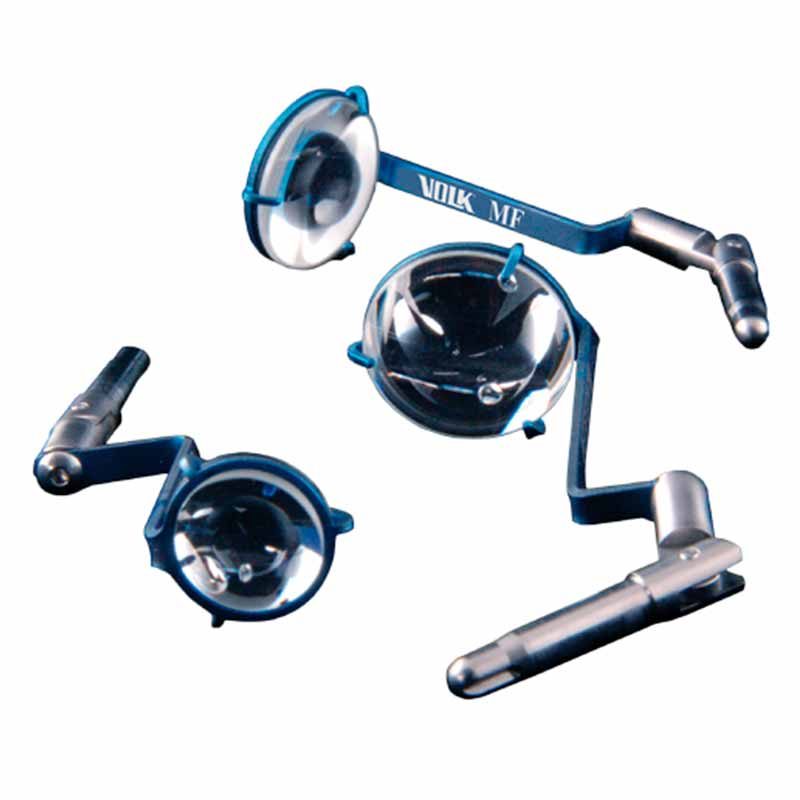

3 OPTIONS. Suit your lens needs

All Merlin lenses are:

Designed using Volk’s proprietary double aspheric lens technology
Made from PermaView glass, designed to withstand repeat steam sterilization without degradation
Equipped with a hinge mechanism to ensure patient safety in case of accidental contact

SYSTEM. Components

Microscope Adapter Mounting Plate
Condensing Lens Assembly (CLA)
Lens Positioning Unit (LPU)
Selection of High Resolution Lenses
Sterilization Case
Installation Manual

OUR. Guarantee

Volk Optical warrants Merlin and ROLS against defects in materials or workmanship for a period of one year from receipt by end user.

YOU. Peace of Mind

We offer and extended service plan with complete Volk support that will ensure your Merlin system is fully functiional and in great shape. Please inquire for more information. Additional information including technical specifications, safety information, and sterilization instructions are included in the installation manual.
