Pictor Plus
The Pictor Plus portable imager moves with your practice and makes it possible to expand your services.
Improved Patient Care
The high resolution imagery Pictor Plus produces is very effective during initial screenings and follow-up treatments. Patient information is entered directly into the handset for patient records.
Simple Integration

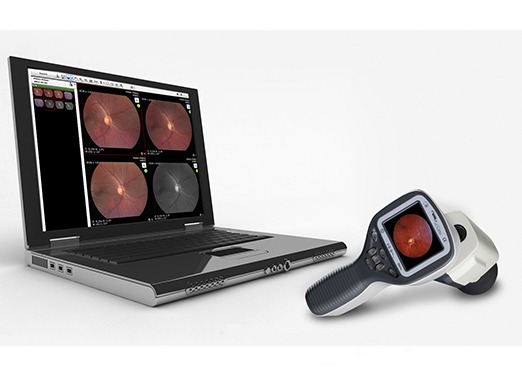

Featuring Wi-Fi connectivity, Pictor Plus can seamlessly integrate with any PC or mobile device to upload jpg images to your patient database system. Pictor Plus is now compatible with multiple image analysis and EMR software solutions and has DICOM compatibility.
Maximum Portability
Weighing a mere 1 lb., (0.45kg), Pictor Plus is easily portable and highly effective in mobile situations.
Superior Versatility
Two easily interchangeable modules provide high resolution retinal (nonmydriatic) or external eye imaging. Two additional modules are available for otoscopic and dermascopic examination.
Powerful | Portable | Practical
RETINAL MODULE
Pictor Plus retinal imaging enables non-mydriatic fundus examination with a 40º field of view. With digital still and video images, the appearance of optic disc, macula and retinal vasculature can be screened and documented for ocular lesions and anomalies.
- 9 fixation targets to target a variety of retinal images
- Reflection free imaging with ten illumination levels
- Not necessary to dilate pupils (minimum pupil size 3mm)
- Produces color and red free images for contrast
- Automatic and manual focusing
- Diopter compensation -20D to + 20D
- Slit lamp mount adapts Pictor to any slit lamp
ANTERIOR MODULE
Pictor Plus anterior imaging provides highresolution digital image data of the surface of the eye and areas directly surrounding the eye. The cobalt blue LED light allows fluorescent imaging to detect a dry eye or any cuts or rashes on the surface of the eye.
- White and blue LED light for image targeting and capture
- Autofocus and optional manual adjustment
- 6x digital zoom
- Image resolution 2560 x 1920 pixels
Retinal, anterior, fluorescein angiography (FA), otoscopic and dermatoscopic imaging modules
Accurate and silent Autofocus and Autoshoot
Digital still images and video (JPEG, MPEG-4 / MPEG-1)

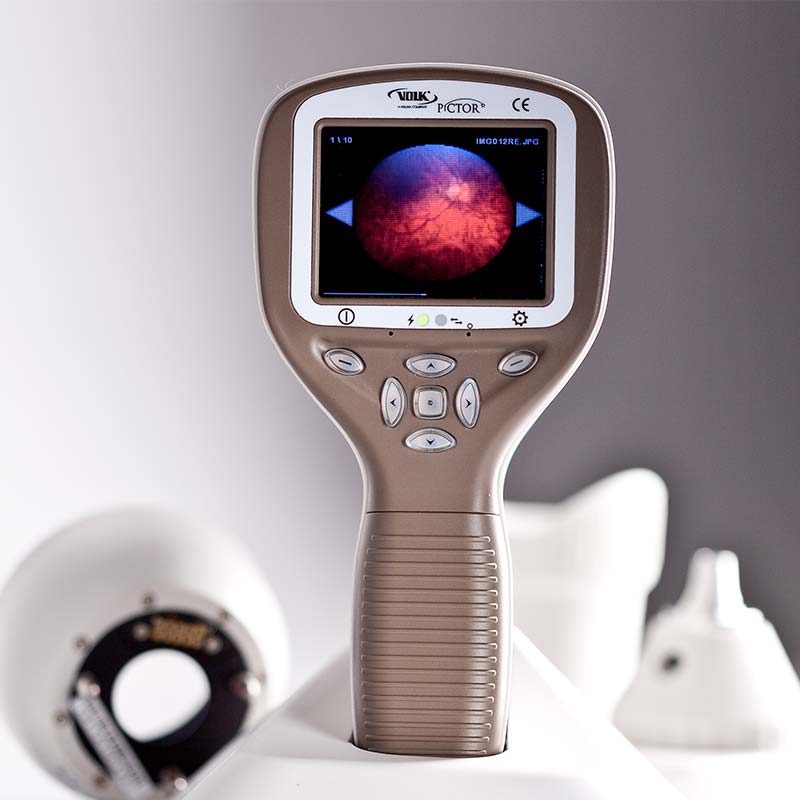

High resolution 2.4” TFT-LCD display
5 Megapixel image sensor
4 GB SD memory card
LED technology
Easy image transfer and sharing via WiFi or USB port

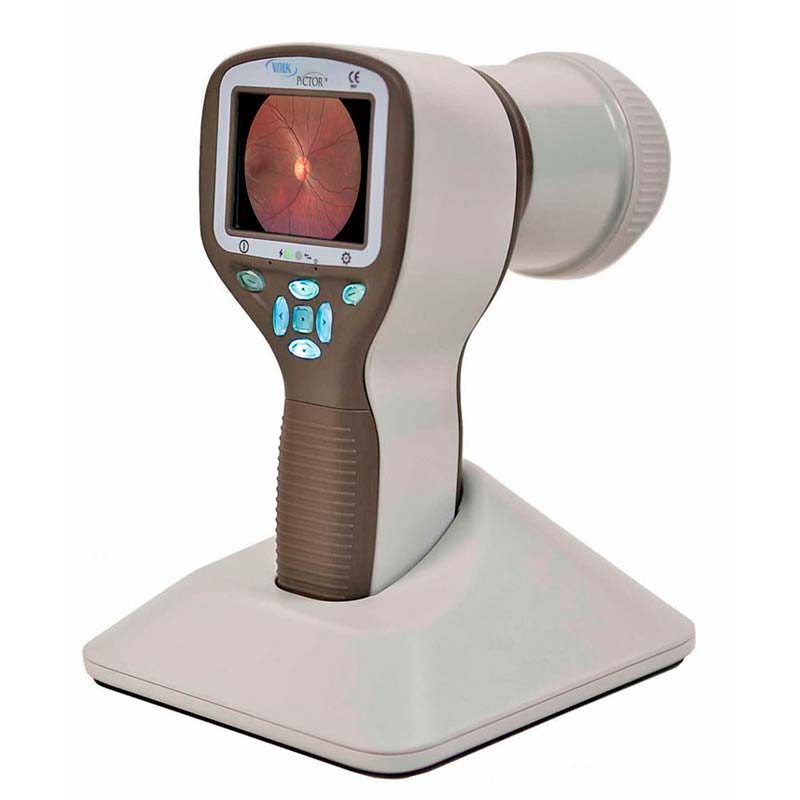

Cradle for charging, docking, and image transfer
Power supply: Rechargeable Ni-MH Battery
Dimensions: 82.30 (w) x 166.50 (h) x 66.50 (d)mm
Weight: 0.9 lbs (400 g)
Aluminum carrying case.
