Accutome 4Sight – A-Scan and B-Scan Probes

For over 30 years Accutome has built a reputation for high quality, reliable and reasonably priced ophthalmic diagnostic equipment. The addition of the 4Sight is no exception. Designed with eye care professionals in mind, the 4Sight provides a single solution for ophthalmic diagnostics by combining an A-Scan, B-Scan, UBM and Pachymeter in one, easy to use platform. We realize the demands on today’s busy clinics and designed the 4Sight to meet those needs by delivering a high value product that is accurate and efficient.

Click Here To Learn More!

For over 30 years Accutome has built a reputation for high quality, reliable and reasonably priced ophthalmic diagnostic equipment. The addition of the 4Sight is no exception. Designed with eye care professionals in mind, the 4Sight provides a single solution for ophthalmic diagnostics by combining an A-Scan, B-Scan, UBM and Pachymeter in one, easy to use platform. We realize the demands on today’s busy clinics and designed the 4Sight to meet those needs by delivering a high value product that is accurate and efficient.

High Value Workstation:

  • Single solution for all ophthalmic ultrasound imaging at an affordable price
  • High quality with industry-leading warranty and service programs
  • Live help and dependable support for the life of the product

Accuracy:

  • Proprietary signal processing
  • Industry leading clinical accuracy
  • Unsurpassed image quality

Efficiency:

  • Single point-of-use technology for all ophthalmic diagnostic imaging needs in an ergonomic portable package

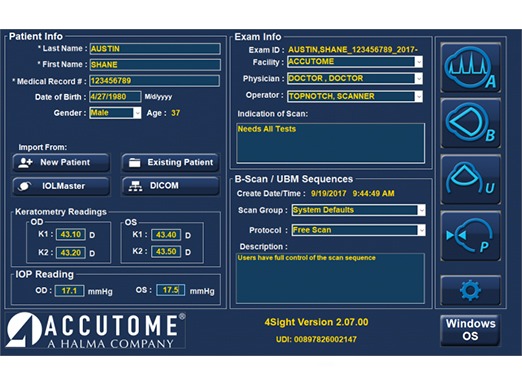

  • Intuitive user interface for a rapid and smooth learning curve
  • Easy data transfer between modalities and higher patient throughput
  • DICOMSM Worklist compatible

4Sight Unit

  • Weight: 5 lbs.
  • Dimensions: 15”W x 2”D x 11”H
  • Touch screen
  • Integrated DICOM worklist modality
  • External connections HDMI and ethernet
  • 5 USB ports
  • A-Scan probe connection
  • Pachymeter probe connection

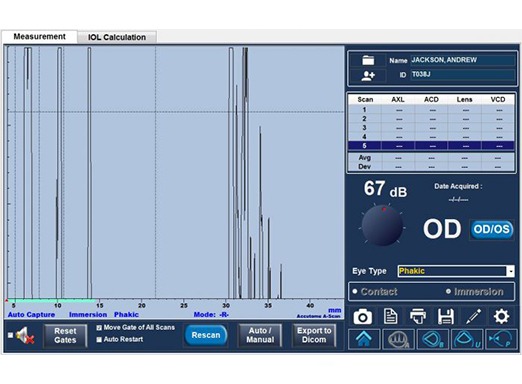

A-Scan Module

  • Weight: 0.08 oz.
  • Dimensions: 1.75”L x 0.2”W
  • Electronic Resolution: 0.016 mm
  • Clinical Accuracy: 0.1 mm
  • Frequency: 10MHz
  • Immersion or contact measurement mode
  • Default eye types Phakic, Dense Cataract, Silicone Filled, Pseudo Acrylic/PMMA/Silicone, Aphakic
  • Custom eye types possible
  • Measurements ACD, lens thickness, VCD, axial length
  • Capture modes auto or manual
  • Data points per waveform 4096
  • IOL Formulas Hoffer Q, Holladay I, SRK II, SRK/T, Binkhorst II, Haigis, Clinical History, Contact Lens, Shammas Clinical, Entered
  • Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP

B-Scan Module

  • Weight: 6 oz.
  • Dimensions 7”L x 1.25”W
  • Axial Resolution: 0.015 mm (electronic)
  • Lateral Resolution: 0.085 mm (electronic)
  • Frequency: 12 MHz or 15 MHz
  • Sampling Rate: 2048
  • Scan Angle: 60°
  • Gamma Linear, S-Curve, Log, Color
  • Time gain control
  • Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
  • 256 scans per frame
  • 12 measuring calipers (6 lines, 2 areas, 2 angles, 2 arrows)

UBM Module

  • Weight: 6 oz.
  • Dimensions 7”L x 1.25”W
  • Axial Resolution: 0.015 mm (electronic)
  • Lateral Resolution: 0.05 mm (electronic)
  • Frequency: 48 MHz
  • Sampling Rate: 2048
  • Scan Angle: 30°
  • Gamma Linear, S-Curve, Log, Color
  • Time gain control
  • 2x optical zoom
  • Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
  • 256 scans per frame
  • 12 measuring calipers (6 lines, 2 areas, 2 angles, 2 arrows)
  • USB cable with power isolator

Pachymeter Module

  • Weight: 0.67 oz.
  • Dimensions: 1.75”L x 0.2”W
  • Accuracy: ±5μ
  • Sample Rate: 65 MHz
  • Measurement Range: 300-999 μ
  • Automated IOP adjustment

Included Accessories

  • Wireless mouse
  • Wireless keyboard
  • Probe holders (on the back of the unit)
  • Power supply
  • A-Scan immersion shell
  • Manual
  • Quick reference guide
  • Test blocks (A-Scan and Pachymeter)

Optional Accessories

  • Original B-Scan table top probe holder
  • Original UBM table top probe holder
  • Ergotron mounting arm (for wall and table mounting)
