Outstanding optical performance and simple operation

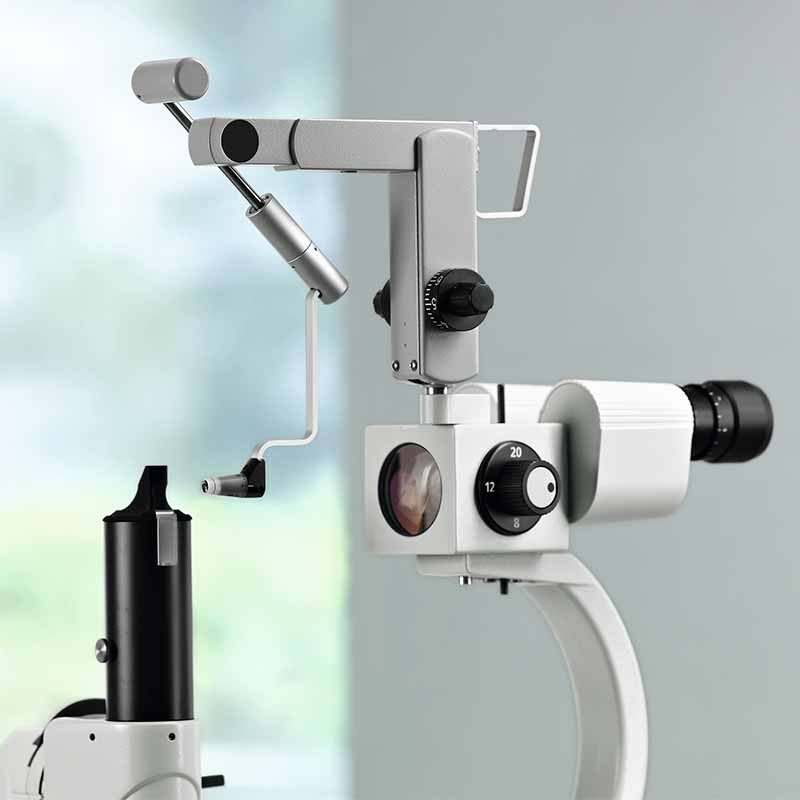

The SL 115 Classic slit lamp boasts truly outstanding optical performance. Its large illuminated field provides a superb view of the entire anterior segment. Designed as a highly durable and robust piece of equipment, it is remarkably easy to operate and always ready when you need it. The short working distance and unhindered access to the patient’s eye make it a pleasure to use. The slit lamp includes an integrated swing-in yellow filter for fluorescence examinations, plus additional filters for increased contrast and red-free observation. For ease of use, the slit can be precisely adjusted with just one hand.
Convenient imaging
The SL 115 Classic features the SL Imaging Module, enabling image and video recording – whether for documentation, patient consultation or presentations. The SL cam 5.0, a fully integrated, highly compact 5-megapixel camera, and the SL imaging software, combine forces to deliver high-resolution images and videos. User-specific capture settings and image review functionalities promote a smooth workflow. The SL Imaging Module is also available as an easy upgrade kit for existing SL 115 Classic slit lamps.
Christmas tree cataract in retro-illumination
Overview in diffuse illumination
A wide range of accessories available for your ZEISS Slit Lamp
From measurement and documentation to therapy, a broad spectrum of optional accessories is available for your slit lamp. If you are looking for more patient comfort, improved ergonomics or imaging solutions, learn more about suitable options for your ophthalmic workstation now.
| Optional accessories for SL 115 Classic | |
| Imaging Solution | SL cam 5.0 – SL 115 |
| Applanation tonometer | AT 020 with measuring prism |
| Eyepiece | 10x eyepiece for length and angle measurement |
| Ergonomics | Fixation light |
| Hygiene accessories | Breath shield Paper for chin cup |
| Laser attachment | VISULINK® 532/U with laser application for VISULAS® 532s |
| Instrument tables | Instrument table IT 760 (120 V, 50/60 Hz or 230 V, 50/60 Hz) Instrument table IT 1060 (120 V, 50/60 Hz or 230 V, 50/60 Hz) |
| SL 115 Classic Slit Lamp | |
| Magnification | 8x, 12x, 20x with 10x eyepieces |
| Field of view diameter | 25 – 10 mm |
| Eyepiece magnification | 10x super high-eyepoint eyepieces, compensation of ametropia ±8 D |
| Width of slit image | Continuous from 0 to 14 mm |
| Length of slit image | In steps 0.5 / 3.5 / 8 / 14 mm; continuous 1 – 14 mm |
| Decentration of slit image | ±4° horizontally, click stop at 0° |
| Swivel range of slit projector | 180°, scale for angular difference; click stop at 0° |
| Angle of incidence | 0° |
| Filters | blue, green (red-free), swing-in; heat-reflecting filter, permanently integrated; diffusing screen, swing-in; barrier filter (yellow) |
| Projection illumination | 6 V / 10 W halogen lamp |
| Rated voltage | 100 – 240 V ±10 %, self-sensing, 50/60 Hz |
