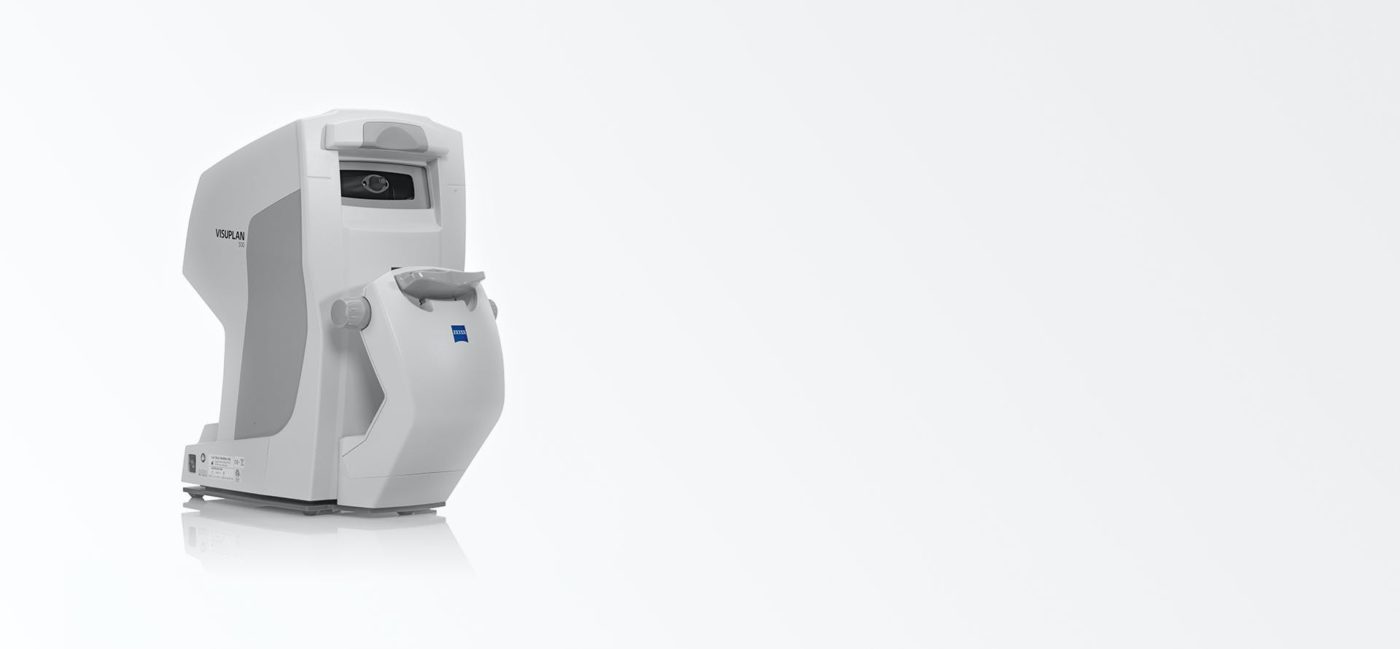

ZEISS VISUPLAN 500

Non-contact Tonometer

The measurement of intraocular pressure is part of every professional glaucoma screening. The VISUPLAN® 500 from ZEISS makes this examination very easy, and contrary to the Goldmann Tonometry method, does not require contact with the cornea or an anesthetic. Instead, the IOP is measured with a soft puff of air and can be administered by your practice team.

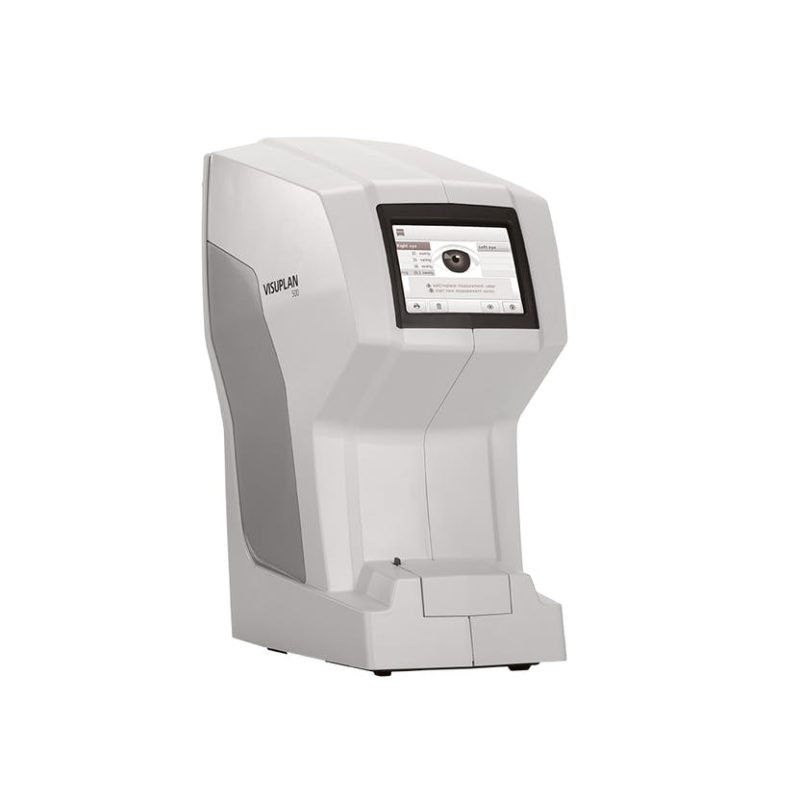

Intuitive operation

The measurement process runs automatically. Simply start the test via the touchscreen and choose from single or multiple measurements. You may also opt to prepare your patients for the exam by initiating a test puff. After testing, the results will appear promptly on the monitor, though you may also choose to print out the results with the integrated thermal printer or export them via the serial interface.

The power of 100,000 scans per second

Soft puff of air for more comfort

The ZEISS VISUPLAN 500 makes the measurement of intraocular pressure a gentle and more comfortable process for your patients.

Dimensions (W x D x H)	270 x 359 x 501 mm
Dimensions with optional manual chinrest (W x D x H)	270 x 480 x 510 mm
Weight	10.9 kg
Weight of the optional chinrest CR4VP	3 kg
Power frequency	50/60 Hz
Power consumption	60 – 85 VA
Voltage	100 – 240 V
Protection class	1
Instrument type	B (DIN EN 60601-1)
Measuring range	7 – 60 mmHg
Monitor	5.7″ LCD TFT
Printer	Thermal printer
Printer paper	Thermal paper (width: 57 mm, roll diameter: 50 mm)
