Unleashing a new experience in phaco

QUATERA® 700 from ZEISS marks a milestone in cataract surgery. The result is a completely new experience in phaco surgery and with the connection of QUATERA 700 and CALLISTO eye, the cataract workflow is designed to achieve high levels of efficiency. From day one, you and your staff can focus on maximizing care in a highly effective way.

ZEISS patented QUATTRO Pump
Experience chamber stability independent of IOP and flow

ZEISS patented QUATTRO pump is designed to minimize surge effect with regard to length and parameter settings.

ZEISS QUATERA 700 is designed to maintain chamber stability superior over competitive device

QUATERA 700´s control system when aspirating is better able to compensate for variations in leakage flow when irrigating and aspirating fluid.

Shorter duration and higher consistency

QUATERA 700’s surge duration times are shorter and more consistent at all levels compared to Competitor A´s Vision System with Active Fluidics.

Active leakage compensation

ZEISS QUATERA 700’s control system when aspirating is better able to compensate for variations in leakage flow when irrigating and aspirating fluid. This leads to the fact, that ZEISS QUATERA 700 demonstrated better incision leakage compensation than Competitor A.

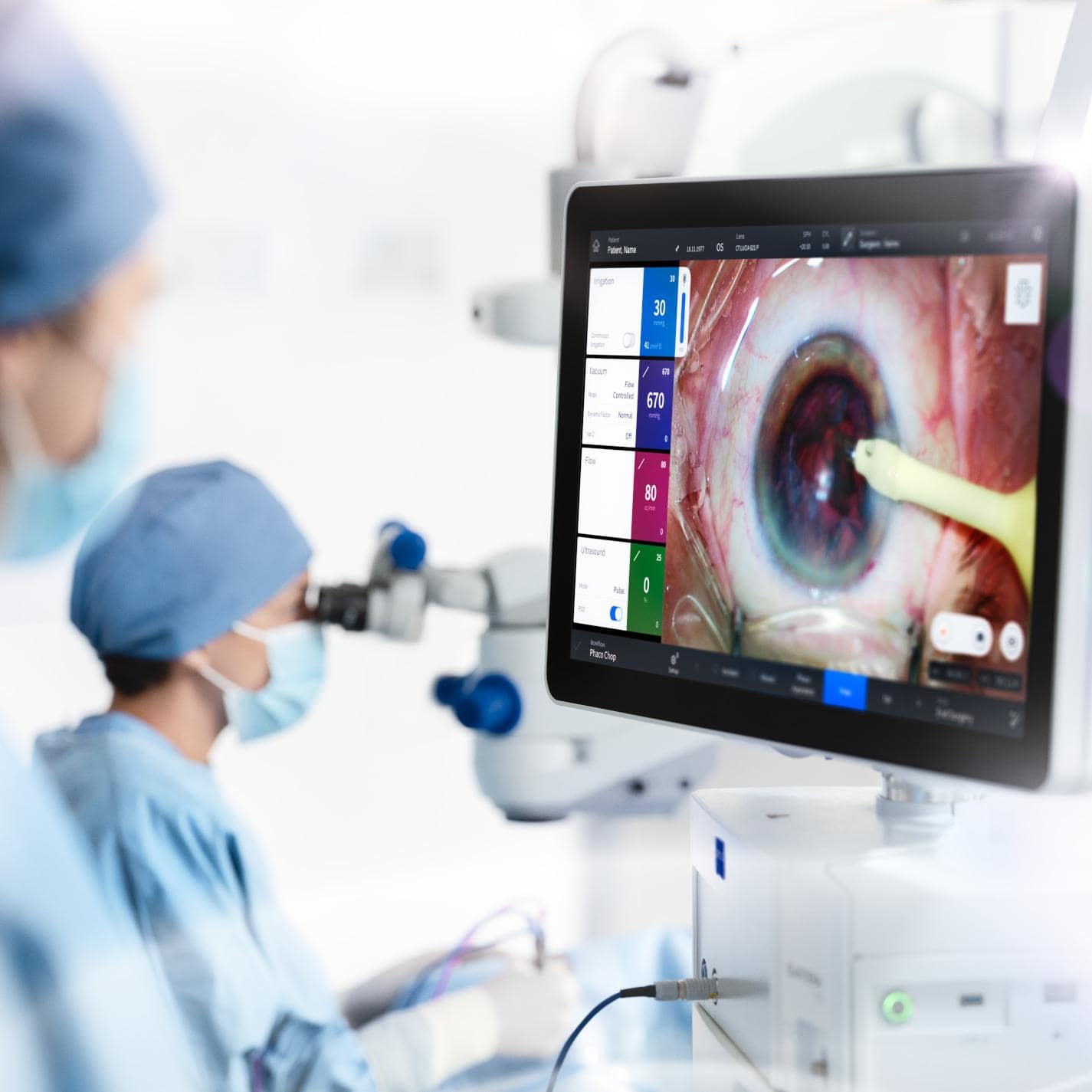

Digitally integrated surgical workflow

Get one view for everyone in the OR

ZEISS QUATERA 700 brings together all elements of the ZEISS Cataract Workflow, making it your single sterile OR cockpit.

Automated Ultrasound Power on Demand

Use automated ultrasound only when needed – upon occlusion

Power on Demand (PoD) is an ultrasound management technology that automatically (de)activates ultrasound only when needed.

Automated Ultrasound Power on Demand

Uncompromised efficiency

Surgeons report excellent ultrasound in terms of ultrasound energy applied and followability without compromises on efficiency.

Less stressful surgical environment

The surgical workflow integration and automated ultrasound activation are designed to deliver a less stressful surgical environment.

Powerful as individual solution – Unstoppable together

The new ZEISS Cataract Workflow

By connecting devices, data and applications, the ZEISS portfolio enables a seamless integration from office to OR and back.

ZEISS OPTIME enables you to focus on patient care.

With OPTIME® service plans from ZEISS, you benefit from priority treatment, enabling you to work without restrictions and avoid unplanned downtime of your systems.

We can support your clinical or practical processes with our service offerings that go far beyond the warranty. A broad range of services can be included in one service plan, which is thus tailored to meet your specific needs.

That’s what ZEISS OPTIME is all about.

Aspiration

Type of aspiration pump

QUATTRO Pump®

Aspiration control mode
Vacuum control mode, flow control mode
Vacuum range

0 to 700 mmHg
Note that the maximum available vacuum pressure might be limited by the environmental pressure.

Flow rate range
0 to 120 cc/min

Infusion

Type of infusion
Quattro controlled, forced infusion
IOP range
30 – 120 mmHg

Phacoemulsification

Type of handpiece
Piezoelectrical
Frequency
40 kHz (+4.5 kHz/-0.5 kHz)
U/S operation modes
Continuous, pulse, single burst, multi burst, continuous burst, APM

Diathermy

Type
Bipolar generator – generator stops when no HF power is required
Type of handpiece
Handpieces for bipolar diathermy, e.g. diathermy forceps, diathermy pencil eraser
Control mode
Fixed or “Linear” mode by pressing the foot pedal.

Vitrectomy

Type of handpiece
23G Anterior Vit Cutter, pneumatic cutting device with guillotine function (back-and-forth)
Actuation medium
Compressed air from internal source
Cutting rate range anterior vitrectomy
30 – 5000 cuts/mi n (± 20 %)

Dimensions and weight

Height
1835 mm
Width
556 mm
Depth
758 mm
Tray arm length (from tray front to console)
875 mm
Weight
160 kg

Electrical data

Rated voltage
100 V – 240 V A C (± 10%)
Rated frequency
50 HZ – 60 HZ
Power consumption
1200 VA
