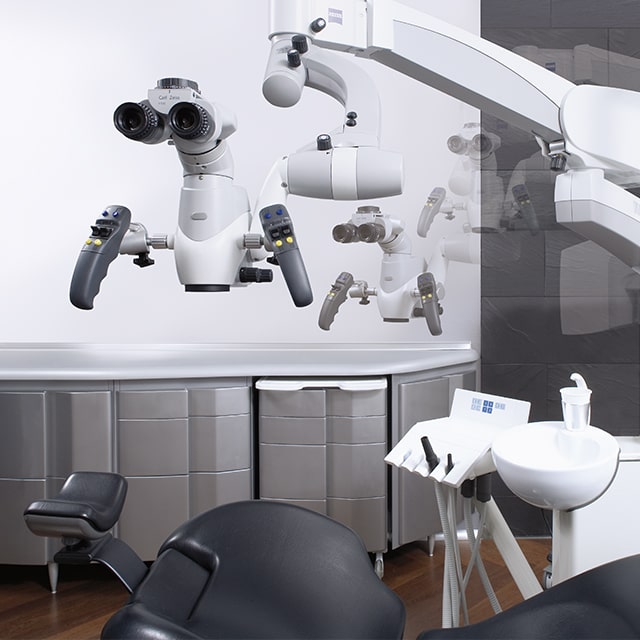

What you see when looking at OPMI PROergo® from ZEISS is a dental surgical microscope with a sleek, attractive design that matches the overall image of any practice. What you do not see is the heart and soul of the instrument – the technology that drives it. The cables, light source, light guide and control console have all been completely integrated into the microscope.
Utilizing ZEISS OPMI PROergo during treatment facilitates a comfortable working position. The ergonomic design helps prevent back and neck pain, as well as more serious spine disorders.
Brightness control and xenon illumination
Automatic brightness control: The brightness settings adjust automatically as you decrease or increase magnification levels to view the entire oral cavity or fine anatomical structures.
Integrated light source and backup lamp module: Standard halogen or optional high-performance xenon ensure high-contrast illumination of the treatment field and a light temperature characteristic of natural daylight.
Balance and brake – for effortless and precise positioning
By unlocking the magnetic clutches on the handgrip, you can maneuver ZEISS OPMI PROergo easily into the desired working position – even if additional accessories such as the co-observation tube and photo adapter with SLR camera are simultaneously connected.
- Free Float Magnetic System for maneuvering the ZEISS OPMI PROergo effortlessly
- The system can compensate for accessories weight up to 14 kg
Functional, motorized and ergonomic design
SpeedFokus for focusing the treatment field with the push of a button without having to move ZEISS OPMI PROergo or change your working position

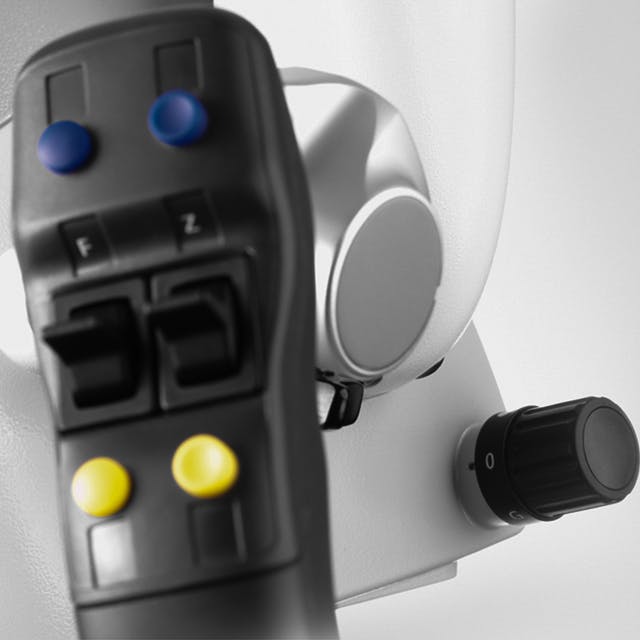

Ergonomically designed handgrips with function keys to control focus, zoom and other configurable functions like brightness, SpeedFokus or image freeze
Digital visualization – for greater clarity
A picture is worth a thousand words: Patients ask for detailed information to help them understand the examination, courses of treatment and the expected outcomes. Clear images and videos are extremely valuable to enhance your patient’s understanding and acceptance:
- Full HD video camera
- Digital HD video recorder to save high-quality videos and photos
- Adapter for digital photography
Optics & illumination
Xenon illumination
Stereo co-observation tube
Double iris diaphragm
Ergonomic design & operating comfort
Foldable Tube f170/f260
Angled optics and tube dovetail
Foot control panel
Autofocus funtion SpeedFocus
VisionGuard drape
VisionGuard drape
Digital visualization
1Chip HD Camera
Adapter for SLR cameras
FlexioStill adapter for digital cameras
FlexioMotion adapter for camcorders
Specifications S7 / OPMI PROergo from ZEISS
| Magnification system | Motorized zoom system; with apochromatic 1:6 ratio; magnification factor Y = 0.4x–2.4x | • |
| Focus | Continuous motorized focusing via Varioskop | • |
| Focusing range of 200-415 mm | • | |
| SpeedFokus only in combination with the video camera | ★ |
Floor stand •
Wall mount (short/long arm) ★
Ceiling mount ★
